Commercial HVLS Fan

AC power driven Commercial HVLS Fans are well known for their large air volume and maximum 65 db noise generation level. These types of ceiling fans have extensive applications in various commercial buildings and also in educational institutes with large ceiling height. Driven by AC power, these 5 blade based fans consume only 220 v voltage. These energy efficient high volume low speed ceiling fans are accessible in 24 feet size. Standard length of their blades generates high air volume which is necessary to drive out concentrated heated air trapped inside any room. These low cost Commercial HVLC Fans have adjustable parameters that make these truly user friendly.

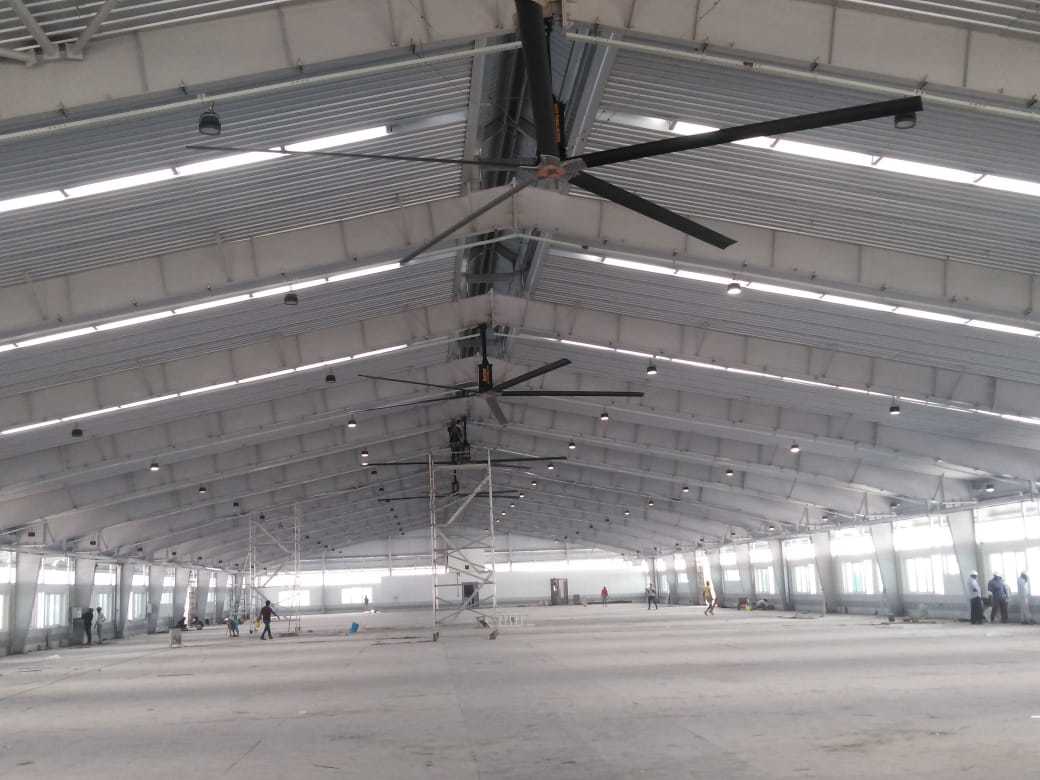

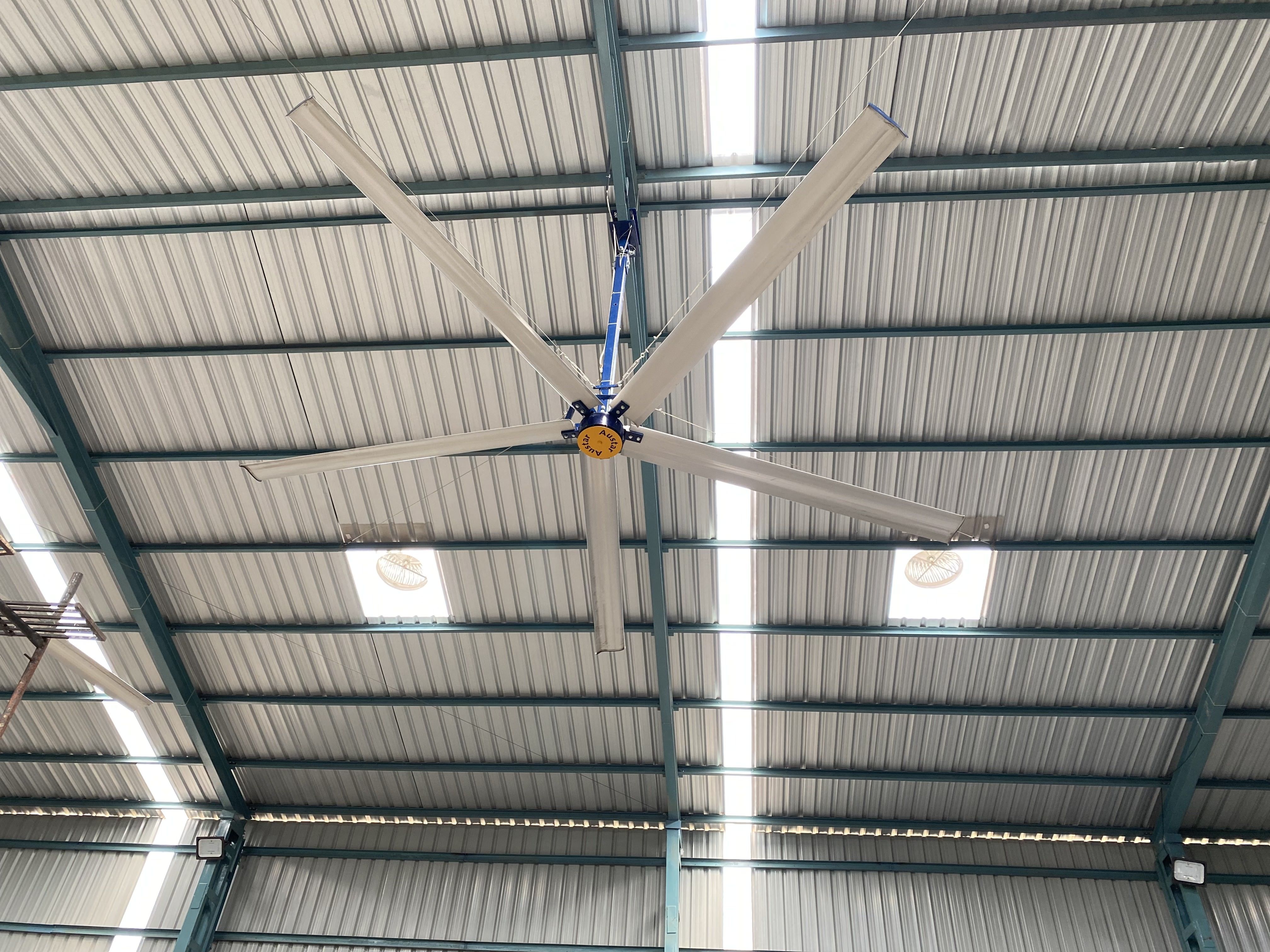

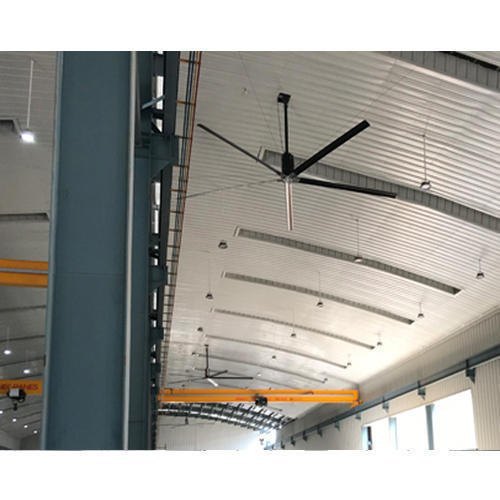

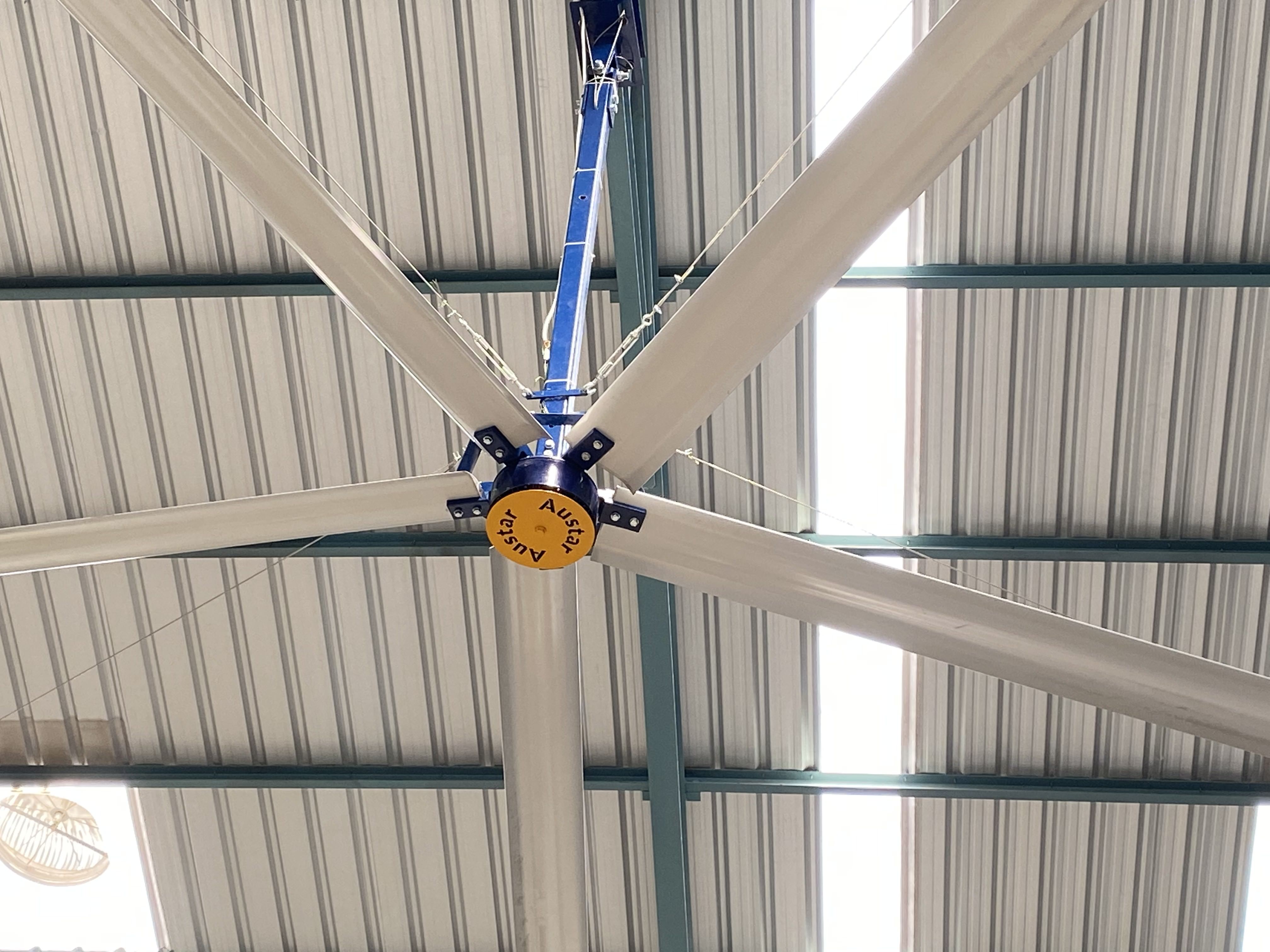

HVLS FAN

Model No. AS245

3. Fan Size 24ft Dia

4. No. of Blades 5 No.s

5. Air Volume 390000 CFM

6. Motor Rating 1.5 KW

7. Speed 50 rpm Maximum ( Variable from 0 to 50 )

8. Noise 60 - 65 db

9. Input Power Single Phase / Three Phase 50Hz

10. Weight 150 Kgs

11. Construction

Frame Structure M.S. ( Powder Coated )

Hanging

Structure M.S. ( Powder Coated )

Impeller ( Hub ) Single Piece Aluminum Die Casted

Fasteners High Tensile 10.9 Grade HEX Bolts (Unbrako / TVS

make)

12. Blades

Design Cambered Aerofoil Design

M.O.C. Aluminum 6063 ( Powder Coated )

Sectional Width 220mm

Wall Thickness 2mm

No. of Ribs 2 Ribs

Parameter Specification

13.

Electric

Geared

Motor

Make NORD ( German Make )

Insulation Class Class F

Efficiency Class IE2

Enclosure IP55

14. Control Penal

Mounting Wall Mounting 4 5 ft from Floor Level

VFD Make Danfoss/Fuji Make

Enclosure IP 55, Power Coated Steel cabinet

Compatibility BMS Compatibility

15. Safety

Certification Compliance certificate to CE requirements

Bolted Joints

All Nuts are self locking type Nylock Nuts which

eliminates chances of loosening.

As additional Safety All Bolted joints are wrapped with

SS wire Rope.

Motor Hub

Assembly

It is coupled through self locking type Split Couplings.

As an additional safety Antifall S Bends are provided

to prevent dropping of Hub in event of coupling

failure.

16.

Warranty

3 Years f or Hub, Blade, & Structure.

1 Year for Geared Motor & Controller.

School HVLS Fan




Trussless Roof HVLS Fan

Our provided Trussless Roof HVLS Fan is widely acclaimed for its better functionality, easy operations, attractive designs, adjustable fan head and powerful motor with superior low voltage start up performance. It is made by making use of optimum quality raw material sourced from certified and reliable vendors of the industry. Clients can avail this Trussless Roof HVLS Fan at industry leading prices from us.



Pole Mounted HVLS Fan

Offered Pole Mounted HVLS Fan move slowly and distribute large amounts of air at low rotational speed. It is manufactured using optimum grade material and cutting-edge techniques in adherence to set industry norms. It is  favored with the resource of using massive variety of clients due to its excessive superb and wonderful features. Customers can avail this Pole Mounted HVLS Fan from us at market leading rates.




50 RPM HVLS Fan
